Assigning Custom SIP Ports

Prerequisites


Access to Kerio Operator Webadmin



Process


Please follow the steps below to specify a non-standard port for SIP configuration.

  1. Log in to Kerio Operator Configuration console as Admin user.

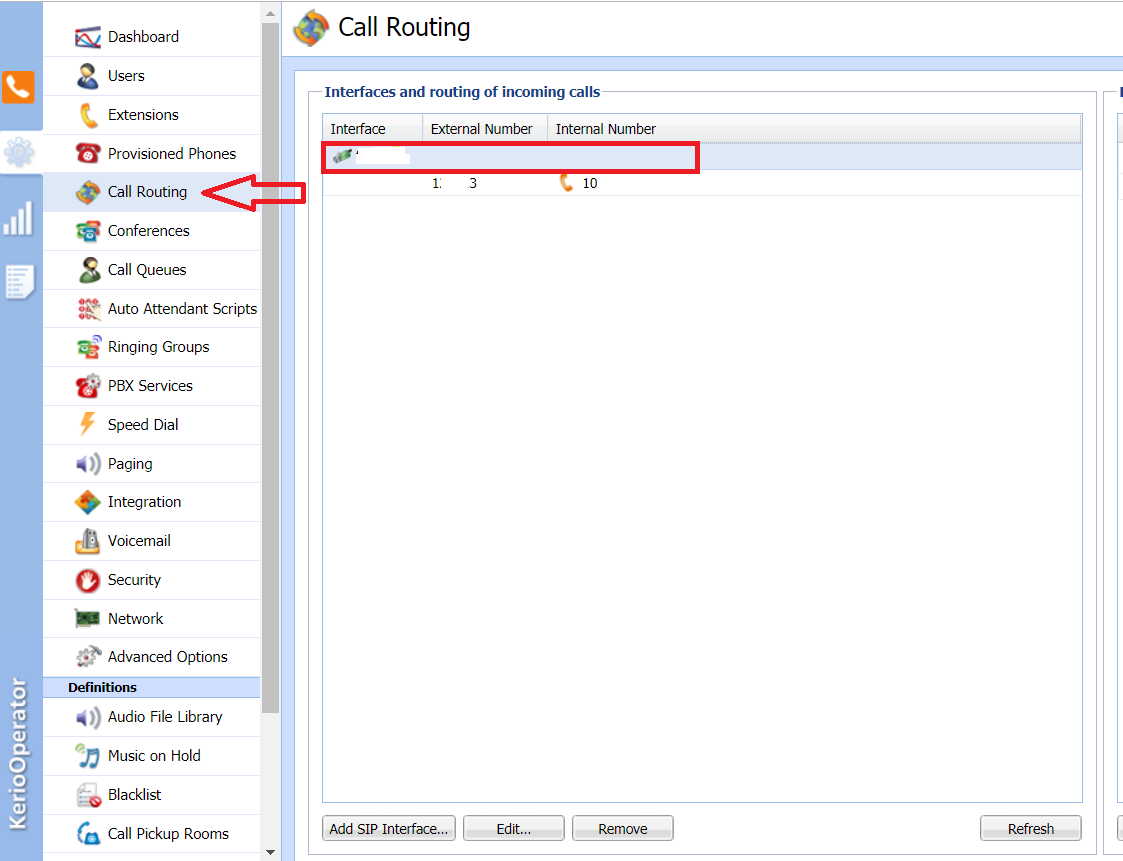

  2. Navigate to Configuration > Call Routing and double-click on the SIP Interface you want to edit.

    image-0

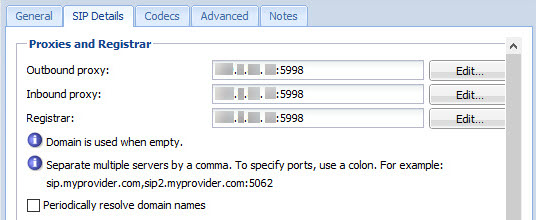

  3. Open SIP Details tab and configure the following fields according to your needs using the following syntax: X.X.X.X:PORT ( where X.X.X.X is the IP address of the SIP server and PORT is the non-standard port).
    • Inbound Proxy
    • Outbound Proxy
    • SIP Registrar


Confirmation


The SIP registration should be successful.
